LOW VOLTAGE POWER CABLE · 0.6/1 kV · IEC 60502-1 · GB/T 12706.1
0.6/1 kV XLPE Power Cable — YJV / YJLV / YJV22.
Copper or aluminium XLPE-insulated power cable for distribution and industrial supply: unarmoured for trays and ducts, steel-tape armoured (YJV22/YJLV22) for direct burial. 1.5–400 mm², single to five cores.
§01 — Type designations
Four type codes, two decisions.
| Type | Conductor | Armour | Use |
|---|---|---|---|
| YJV | Copper | None | Cable trays, ducts, indoor distribution — highest conductivity |

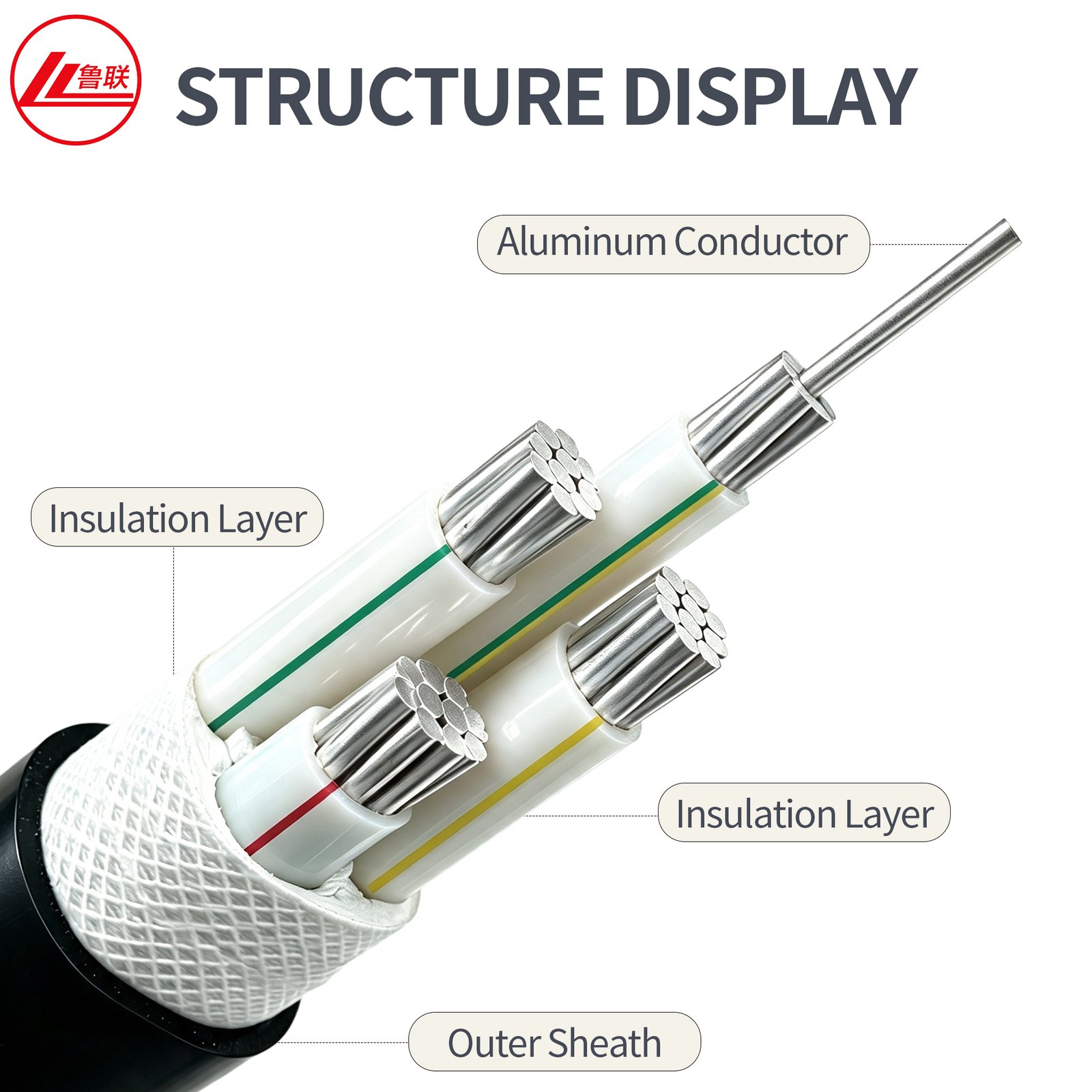

| YJLV | Aluminium | None | Same routes where weight and cost dominate (feeders, risers) |
| YJV22 | Copper | Steel tape (STA) | Direct burial and mechanical-risk routes |
| YJLV22 | Aluminium | Steel tape (STA) | Direct-buried long feeders at the lowest cost per ampere |
§02 — Electrical parameters
Conductor sizes and DC resistance (IEC 60228).
| Cross-section (mm²) | Insulation thickness (mm) | DC R @20 °C, Cu (Ω/km) | DC R @20 °C, Al (Ω/km) |
|---|---|---|---|
| 1.5 | 0.7 | 12.1 | 18.1 |
| 2.5 | 0.7 | 7.41 | 12.1 |
| 4 | 0.7 | 4.61 | 7.41 |
| 6 | 0.7 | 3.08 | 4.61 |
| 10 | 0.7 | 1.83 | 3.08 |
| 16 | 0.7 | 1.15 | 1.91 |
| 25 | 0.9 | 0.727 | 1.20 |
| 35 | 0.9 | 0.524 | 0.868 |
| 50 | 1.0 | 0.387 | 0.641 |
| 70 | 1.1 | 0.268 | 0.443 |
| 95 | 1.1 | 0.193 | 0.320 |
| 120 | 1.2 | 0.153 | 0.253 |
| 150 | 1.4 | 0.124 | 0.206 |
| 185 | 1.6 | 0.0991 | 0.164 |
| 240 | 1.7 | 0.0754 | 0.125 |
| 300 | 1.8 | 0.0601 | 0.100 |
| 400 | 2.0 | 0.0470 | 0.0778 |
Insulation thickness per IEC 60502-1 for 0.6/1 kV XLPE. Ampacity depends on installation method, grouping and soil conditions — issued in the project datasheet with the formal offer.
§03 — Construction
Simple cable, but the details decide the lifetime.
Class 1 solid / class 2 stranded
Copper or aluminium. Sector-shaped (SM) conductors for multi-core ≥ 25 mm² keep the overall diameter down.
XLPE, 90 °C
Cross-linked polyethylene, rated 90 °C continuous and 250 °C short-circuit — one temperature class above PVC (VV) cable of the same size.
STA + PVC ST2
Galvanized steel-tape armour under a PVC outer sheath for the 22 types. PE and LSZH sheaths on request.

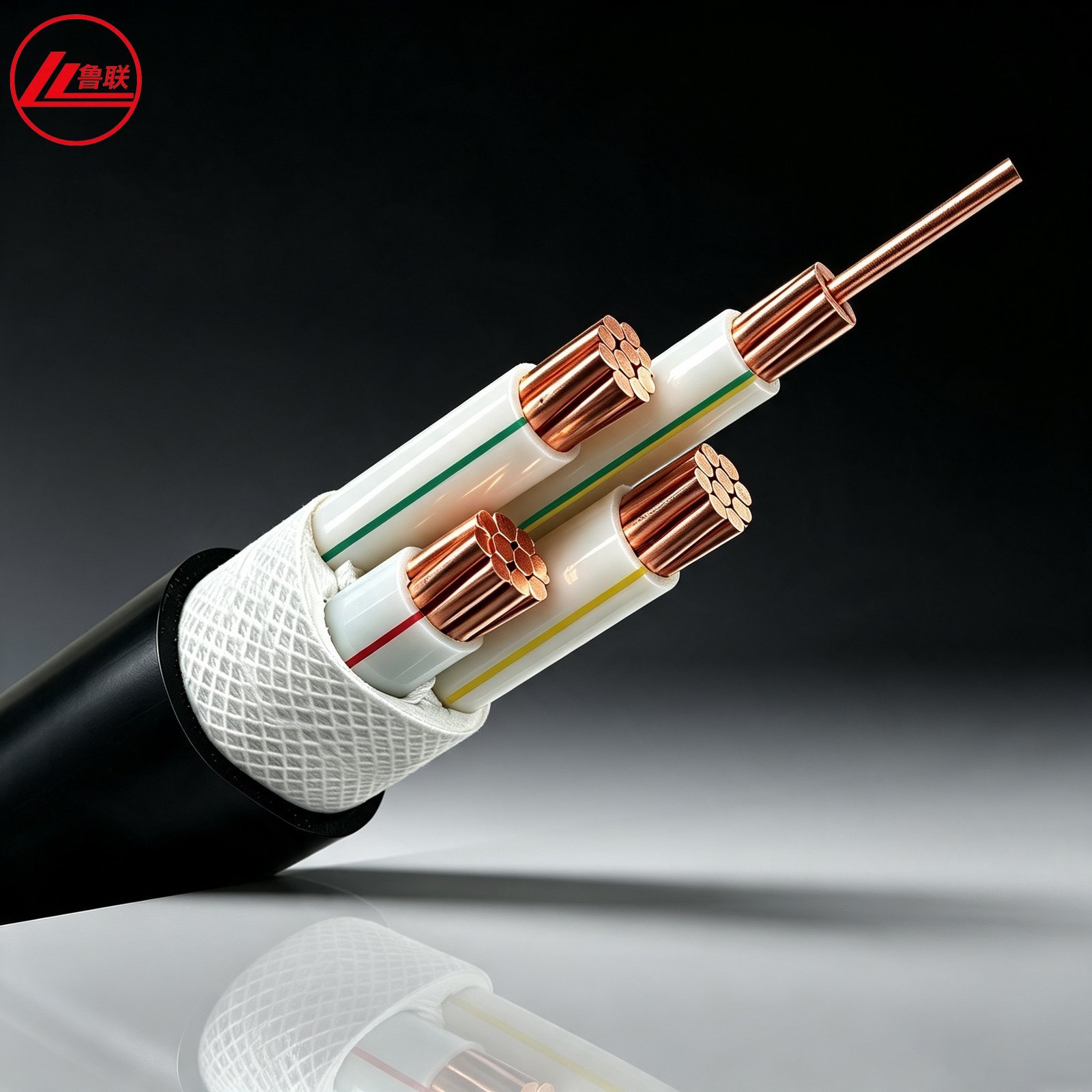

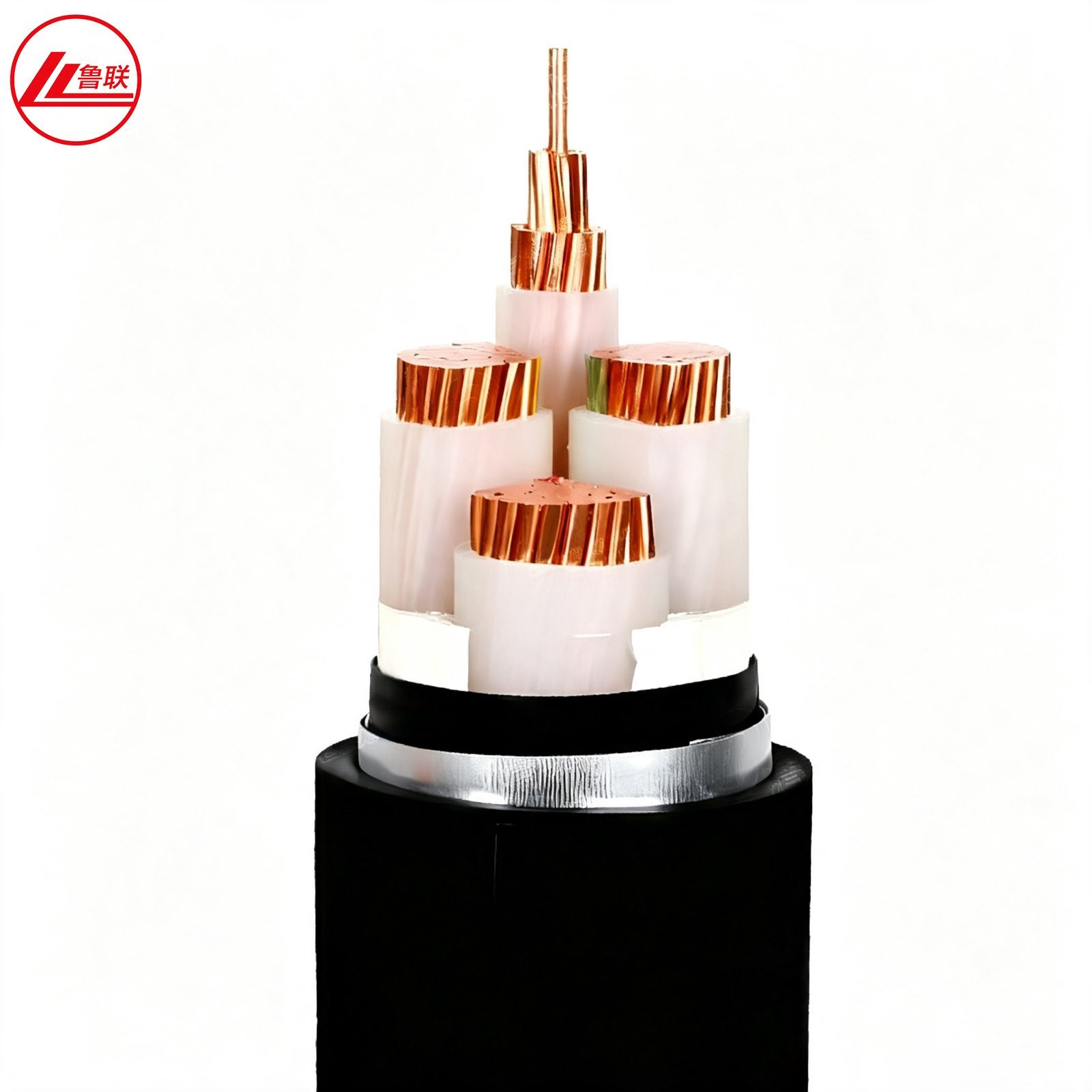

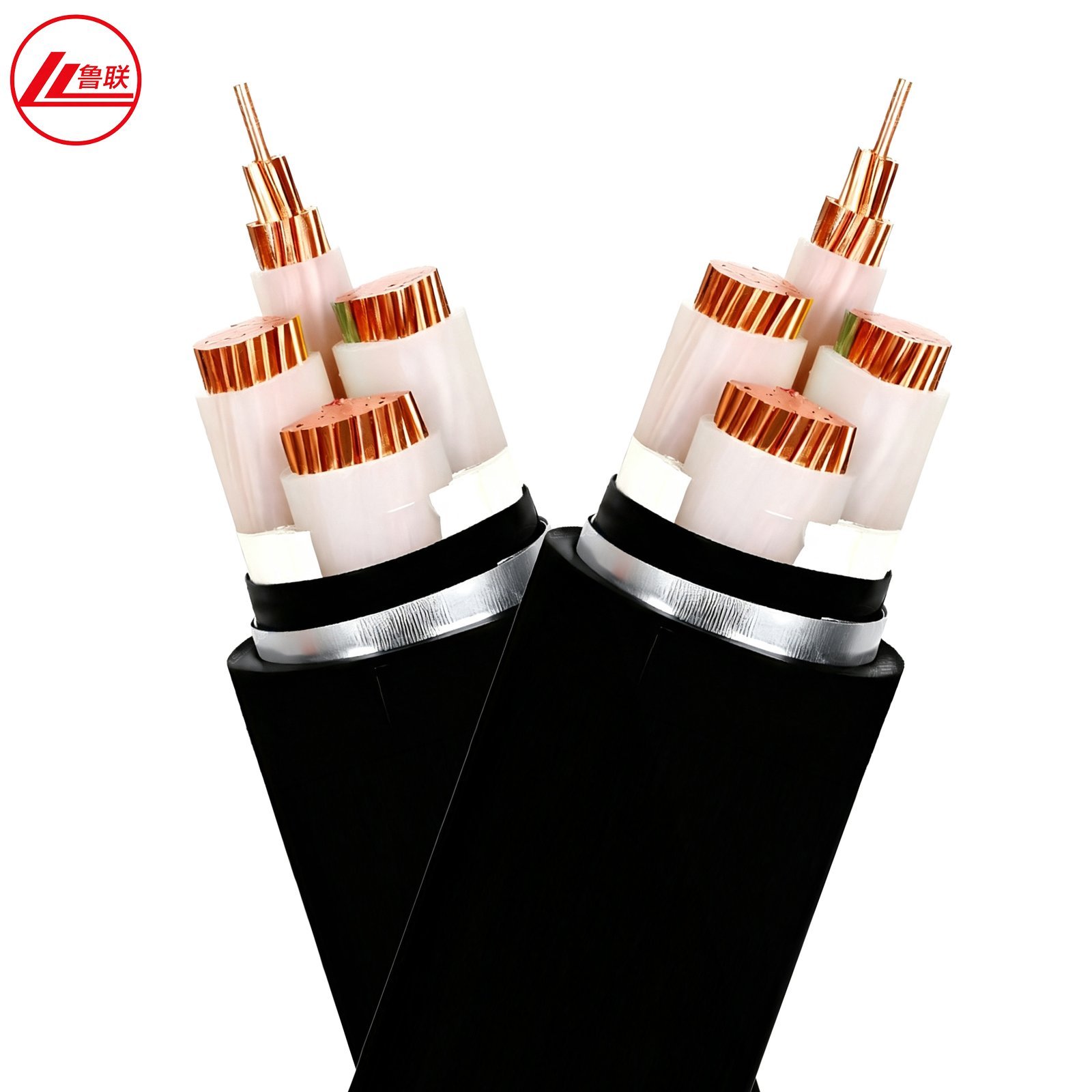

PRODUCT VIEWS
The range at a glance.
§04 — FAQ
Common questions on LV power cable.
XLPE (YJV) vs PVC (VV) cable — which should we buy?
For new installations, XLPE almost always wins: 90 °C vs 70 °C conductor rating means a smaller cross-section for the same load, better short-circuit withstand, and lower dielectric loss. PVC (VV/VLV) still makes sense for price-driven replacements in existing PVC installations. We produce both families.
When is the armoured YJV22 required?
Whenever the cable is direct-buried, pulled through rough ducts, or exposed to mechanical damage. The steel-tape armour also provides a degree of rodent protection. For tray and indoor installations, unarmoured YJV is lighter, cheaper and easier to terminate.
Copper or aluminium — how do we decide?
Rule of thumb: aluminium for long feeders where weight and cost dominate (you need roughly 1.6× the cross-section for equal resistance); copper for terminations-dense panels, high fault levels and where termination volume is limited. Aluminium terminations must use bimetallic lugs — confirm this in the RFQ and we note it on the drum card.
Can you supply LSZH versions?
Yes — WDZ-YJY (LSZH) and WDZN-YJY (LSZH fire-resistant) are standard variants for tunnels, metros, hospitals and public buildings, verified against IEC 61034 and IEC 60754.
Send the cable schedule. We confirm in 24 hours.
Share conductor material & size, core count, armour, installation method, total length and destination port.
